Innovative motor transmission design
Supports 240° horizontal and 50° vertical panoramic monitoring
Supports multiple preset operations
Supports automatic functions such as standby actions and guard location
Supports extended PoE functionality
Supports concealed power box design
Lightning protection, surge protection
Protection grade IP66
| Model | ZN-PT400A |
| Pan Range | Pan: 240° |
| Pan Speed | Pan: 0.1° to 15°/s |
| Tilt Range | Tilt: 50° |
| Tilt Speed | Tilt: 0.1° to 10°/s |
| Presets | 10 |
| Guard Location | Support |
| PT Speed Adaptation | Support |
| Patrol Scan | Support |
| Protocol | Pelco D/P |
| Baud Rate | 2400/4800/9600/38400bps |
| Communication Interface | RS485 |
| General | |
| Power Supply | DC12V±5%； |
| Power Consumption | ≤7W |
| Ingress Protection | IP66 |
| Working Temperature | -30°C~+60°C (-22°F~ +140°F) |
| Working Humidity | ＜90%RH |
| Protection Level | IP66 |

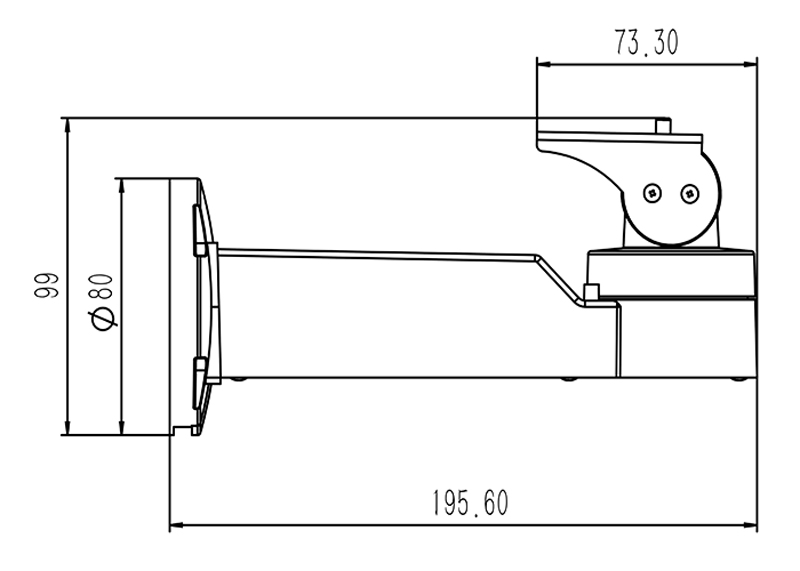

| Size | 195×80×99mm（L×W×H） |
| Weight | 0.275kg (0.606 lbs) |
