CCTV Camera Application for Forest Fire Protection

Background:

Forest fires are one of the important global forestry disasters. They are sudden and random, and can cause large losses in a short period of time. A certain number of them occur every year, causing major damage to forestry resources. losses and global environmental pollution. Therefore, once a fire occurs, firefighting measures must be taken very quickly. Digital forest monitoring has become a necessary means to detect forest fires early and eliminate hidden dangers of forest fires.

System Introduction：

ZIWIN fire warning system is scientifically planned and laid out in a unified manner based on the landform characteristics, vegetation characteristics, and climate characteristics of different regions, with "practicability" as the focus of construction. Replace traditional monitoring methods with digital intelligence, transmit the collected image information and sensor data to the command center through the network, and use big data analysis and GIS (Geographical Information System) to provide real-time early warning and positioning of smoke and fire sources. At the same time, the best firefighting plan is generated to control fire danger in the bud. Thereby improving the comprehensive management capabilities of forest fire prevention and fighting.

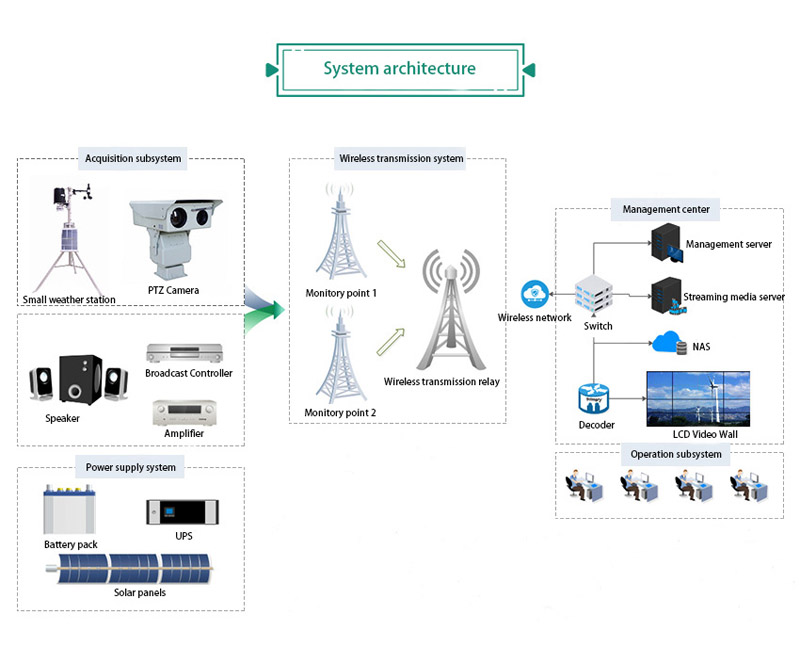

The entire system consists of three parts: front-end system, transmission system, and management center system. The front-end system includes: dual light thermal imaging integrated camera, anti-theft camera, shouting system, various sensors and other collection equipment; power supply system; installation base station; transmission system includes: two transmission methods: optical fiber or broadband wired transmission and microwave wireless transmission; management The central system includes: GIS assisted decision-making system, central storage, large screen, etc.

The dual vision thermal imaging camera is a long-range thermal imaging camera developed based on uncooled infrared technology and continuous zoom infrared optical technology. It uses a high-sensitivity 640X512 resolution uncooled focal plane imaging detector. The specially designed optical continuous zoom infrared lens takes into account the dual application requirements of search and observation. Built-in intelligent analysis module and hot spot detection algorithm can automatically detect long-distance heat source targets such as flames, vehicles, and people. Supplemented by a heavy-duty 360-degree omnidirectional pan/tilt, it can detect fire sources within a radius of 10,000 meters and display alarms.

The system meets the business needs of fire prevention monitoring, pest and disease monitoring, sandstorm prediction and monitoring, forest and grass resource monitoring and emergency communication support. It has fire spot detection and map positioning, forest fire resource management, emergency plan management and other related functions.
